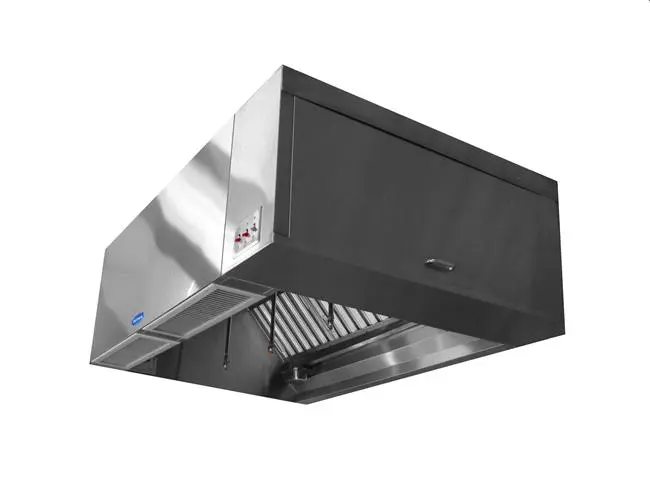

SCRAC Type I Self Compensating Exhaust Hood
Overview
The Short Circuit Register Air Curtain (SCRAC) hood model is a self-compensating canopy style hood. This hood model introduces make-up air in two methods. The make-up air is discharged down from the bottom edge of the hood through flush mounted registers. A portion of the make-up air is delivered directly into the canopy through flush mounted internal registers. The Short Circuit design of this hood requires less tempered make-up air than other models. The SCRAC hood model is recommended for light to medium cooking loads.
Features
• Standard Hood Widths: 48”, 54”, 60”
• Standard Hood Lengths: One-piece construction from 4’ through 16’
• Standard Hood Heights: 24” & 30”
• Material Types: 430 & 304 Stainless Steel or Aluminized Steel
• Non-listed sizes and alternative materials are available
• UL Listed pre-wired incandescent lights
• UL classified Aluminum Baffle type grease filters
• Full crate and packaging
• 100% freight allowed pricing
• Larkin Industries constructs the SCRAC hood from heavy gauge materials, and employs a solid welded standing seam construction
• Construction techniques and strict quality control measures ensure a top quality end product that is built to provide years of trouble-free service
• Registers mounted internally and on the bottom edge of the canopy introduces 80% of the system’s required make-up air
• The Model SCRAC is built in accordance with: NFPA96, ETL listed and tested to UL710 Standards, and approved by the NSF
Advantages
• The use of heavy gauge materials and construction techniques result in an end product that is more rigid and easier to install
• The SCRAC hood is shipped complete with no external plenums to install
• Introducing a portion of the make-up air directly into the kitchen hood canopy allows some of the make-up air to be re-exhausted; this reduces the HVAC load of the kitchen
• Make-up air is introduced in a way that reduces the need for tempered make-up air in colder climates and may eliminate the need for tempered make-up air altogether
• Kitchen comfort is maintained in all seasons due to the make-up air being immediately exhausted and not cooling/heating the kitchen space
• Make-up air is discharged in a manner that does not interfere with capture and containment of the kitchen hood system and does not impede cooking operations below the hood
• The SCRAC hood is recommended for most cooking applications from light to medium cooking loads
• 100% freight allowed pricing guarantees you will never see freight bills
V-Bank Island Style
Standoffs 3", 4", 6"
External Supply Plenums
Volume Damper (MUA)
Ceiling Enclosures
Wall Splash Panels
End Panels
1, 2, 3 and 4 Switch Control Panels
Electrical Control Packages
Auto Fan Control System
Energy Management Systems
ANSUL Fire Suppression
Fire/Utility Cabinets
Recessed Lights
High Efficiency Grease Extractors
Stainless Steel Filters
Specialty Baffle Type Grease Filters
High-Velocity Cartridge Filters
Standard Incandescent Light
All Stainless Steel Construction
Finished Backs
Insulated Plenums
Listed Fire Damper in Exhaust Collar
Return Policy
ALL SALES ARE FINAL. Hoods are a custom made item and cannot be returned. No charge backs.
All sales are non transferable to another user.
Shipping
Lift gates are not available from LTL shipping carriers for products over 96″ in length.
Freight includes one shipment only, delivered to the job site address listed on this proposal. Customer is responsible for freight charges on any items shipped early. This is an estimated freight charge and is subject to change based on current freight costs when the job is released for production.
Orders take 2 weeks to build a hood system and the delivery from the factory to you can take up to two weeks depending on geographic location.
